With the introduction of DDR5, the variety of new RAM technologies continues to evolve – especially for high-end systems. In addition to the well-known DDR5 UDIMM and SODIMM RAM modules for consumer systems, new memory technologies such as CUDIMM and CSODIMM are becoming increasingly important. But how do these new types of RAM differ from traditional UDIMMs and SODIMMs? And which high-performance systems can truly benefit from them?
In this blog article, we explain the differences, advantages, and application areas of these new memory standards – and help you find the right solution for your system.
These are the topics covered in our blog article:
- What CUDIMM and CSODIMM are – explained simply and clearly
- The key differences from conventional DDR5 RAM
- Advantages for high-end systems: Workstations & gaming PCs
- Buying guide: What to consider when upgrading RAM?
- FAQ: Terminology explained
What is a CUDIMM or CSODIMM?
The terms CUDIMM (Clocked Unbuffered DIMM) and CSODIMM (Clocked Small Outline DIMM) refer to new types of DDR5 RAM modules that are primarily used in high-end systems. They are based on the familiar UDIMM modules (for desktops) and SODIMM modules (for laptops) but differ in one important detail: the internal clock signal distribution.
While traditional RAM modules receive the clock signal directly from the motherboard, CUDIMM and CSODIMM feature their own clock buffering, which improves signal quality – especially at higher clock speeds or with longer signal paths.
In short:
- CUDIMM: Optimized clock distribution for maximum performance in desktop PCs and workstations.
- CSODIMM: Compact form factor with integrated clock boosting – perfect for mobile workstations, mini PCs, or space-constrained systems.
What makes them special:
- More precise clock signals thanks to improved signal distribution
- Higher stability at high clock frequencies
- Ideal for demanding applications like 3D rendering or AI computations
The key difference compared to conventional RAM modules lies in the intelligent signal processing, which ensures maximum stability and top performance—especially at high DDR5 clock rates.
Important – do not confuse with XMP or EXPO RAM!CUDIMM and CSODIMM are special DDR5 RAM modules featuring improved clock signal distribution (clocked technology). They do not include manufacturer-defined overclocking profiles like Intel’s XMP (Extreme Memory Profile) or AMD’s EXPO/DOCP.
While XMP/EXPO allow RAM to be overclocked beyond JEDEC standards via BIOS settings, CUDIMM/CSODIMM operate within official specifications and use integrated Clock Driver Chips (CKD) to provide more stable and reliable signal distribution.
The key differences compared to conventional DDR5 RAM modules
What does “Clocked” mean in CUDIMM and CSODIMM?
“Clocked” RAM modules such as CUDIMM and CSODIMM improve clock signal distribution compared to conventional DDR5 RAM – resulting in greater stability under high load or with multiple modules installed.
In traditional UDIMM or SODIMM modules, the clock signal is passed directly from the motherboard to all memory chips. The higher the frequency or the more modules are installed, the more sensitive this signal becomes to interference, crosstalk, or timing issues.
Clocked RAM Architecture: Technical Advantages of CUDIMM and CSODIMM
Improvement of signal quality / Reclocking
An integrated reclocking circuit removes clock jitter and improves signal stability. A highly precise PLL (Phase-Locked Loop) synchronizes the input signal with an accuracy of up to ±50 picoseconds.
Impedance matching
Dynamic load adjustment compensates for different capacitive loads between DIMM slots – especially with asymmetric configurations. The driver strength is specifically tuned to the respective memory banks to minimize reflections and signal distortions caused by impedance differences.
Topology adjustment
Dynamic load adjustment compensates for different capacitive loads between DIMM slots – especially with asymmetric configurations.
This architecture addresses typical challenges of conventional DDR5 modules – especially at data rates of 5600 MT/s and above. Particularly in daisy-chain topologies, common in many consumer motherboards, signal integrity suffers significantly when all slots are populated. Clocked modules enable stable operation with four populated DIMM slots for the first time. Automatic reduction of clock speed is avoided.

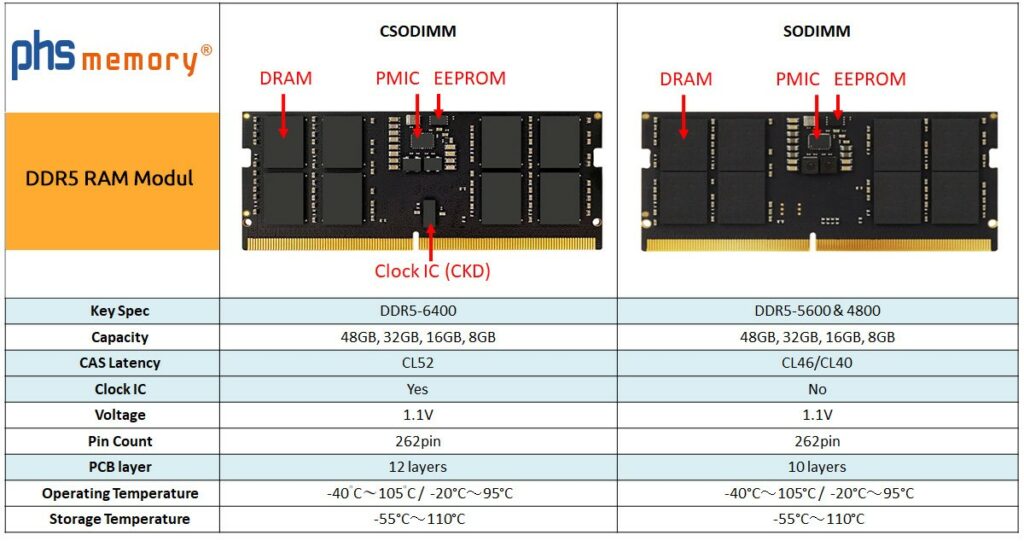

CUDIMM & CSODIMM vs. Conventional DDR5 Modules
| Feature | DDR5 UDIMM / SODIMM | CUDIMM / CSODIMM |
| Buffering | Unbuffered | Unbuffered, but with integrated clock buffering logic |
| Clock management | Standard clock distribution via motherboard | Improved clock distribution through integrated clock chip (CKD) |
| Compatibility | Standard motherboards | Requires motherboards with support for CUDIMM/CSODIMM |
| Signal processing | None | Reclocking + jitter filtering |
| Use case | Consumer desktops, laptops | Workstations, entry-level servers, professional gaming systems |
| Advantages | Cost-effective, widely available, affordable | Higher signal stability, improved timing control |
Systems with clocked DDR5 modules are aimed at users who need more stability and performance without having to switch to more expensive RDIMMs (Registered DIMMs) or server platforms.
Typical use cases:
- Workstations for CAD/CAM, simulation, 8K video editing
- Professional mini PCs and industrial computers
- Compact server solutions or OEM devices
- Development systems with high RAM clock speeds
Thanks to better clock distribution, you can run more modules at higher clock speeds stably without having to rely on RDIMMs – ideal for systems with 4+ RAM slots or DDR5 RAM with clock speeds beyond 5600 MT/s.
Compatibility: Not Every System Supports CUDIMM/CSODIMM
CUDIMM and CSODIMM are not universally compatible. The motherboard manufacturer must explicitly provide support for these memory types—both in the BIOS and in the electrical design. Not every motherboard can properly recognize and operate CUDIMM or CSODIMM.
Therefore, the following applies:
- In the Speicher.de online shop, “Clocked” memory modules are labeled with CUDIMM or CSODIMM.
- Our memory experts have verified in advance whether the offered “Clocked” RAM is fully compatible with the PC system and can be used.
- If “Clocked” RAM is installed in a PC system not designed for it, the advantages of “Clocked” RAM modules will not be utilized.
- If “Clocked” RAM is used together with standard RAM modules without CKD chip on the same motherboard, the “Clocked” functionality will be automatically disabled.
Currently, CUDIMM or CSODIMM are supported by processors of the Intel Core Ultra 200 series – codename: Arrow Lake, which are based on the Z890 chipset. Motherboards with AMD CPUs are not yet known but are expected to follow soon.
Motherboards with full CUDIMM support:
| Manufacturer | Model Name | Chipset | Processor Series |
| ASUS | ROG Maximus Z890 Hero | Z890 | Intel Core Ultra 200 |
| MSI | MPG Z890 Carbon WiFi | Z890 | Intel Core Ultra 200 |
| Gigabyte | Z890 AORUS Master | Z890 | Intel Core Ultra 200 |
Please note that actual support depends on the specific combination of CPU, motherboard, and BIOS version!
Our support team is happy to assist you in selecting compatible components.
Glossary: FAQ
What is a reclocking circuit?
The reclocking circuit (also called signal re-timing) is a key feature of modern CUDIMM and CSODIMM modules. It is an electronic circuit with an integrated PLL chip (Phase-Locked Loop) that takes the clock signal coming from the motherboard and:
- resynchronizes it (correcting timing deviations),
- cleans up the signal (reducing jitter),
- and amplifies it (for clean redistribution to the memory chips).
The reclocking circuit ensures stable clock distribution, especially at high data rates like 5600 MT/s or more — this is a crucial advantage over classic UDIMM/SODIMM modules without clock amplification.
What is clock jitter?
Clock jitter refers to small, undesired timing variations in the clock signal of a processor or memory module. This means the transition between logical states (e.g., from 0 to 1) does not occur exactly at the intended clock time but is slightly shifted—sometimes earlier, sometimes later.
Causes of clock jitter:
- Electrical noise in the power supply
- Crosstalk between adjacent signal lines
- Interference from nearby components
- Signal reflections in long traces
- Thermal fluctuations
Modern memory technologies like CUDIMM/CSODIMM employ active jitter reduction techniques to minimize these issues.
What is driver strength?
Driver strength in electronics refers to the ability of an output (e.g., a chip, controller, or clock driver) to transmit an electrical signal with sufficient voltage and current onto a line—without loss of quality.
In the context of RAM modules, this mainly concerns the signal lines for clock and data transmission. The more memory chips or modules are driven simultaneously—such as with long traces or multiple occupied DIMM slots—the stronger the output signal must be to:
What is a daisy-chain topology?
The daisy-chain topology is a wiring method on motherboards where multiple RAM slots (DIMM slots) are connected sequentially to a common clock signal—in other words, in series connection.
The clock signal runs, for example, from slot 1 → slot 2 → slot 3 → slot 4.
Each slot affects the signal for the next one. The further down the chain the slot is, the more the signal quality deteriorates.
This topology has a direct impact on signal quality and stability under high RAM loads, especially for DDR5 RAM modules. For this reason, CUDIMM/CSODIMM modules have an integrated clock-buffering circuit that amplifies, stabilizes, and redistributes the clock signal. This advantage helps compensate for the weaknesses of serial wiring in daisy-chain designs and prevents signal loss.
