Installation Guide for SO-DIMM Memory Modules
This installation guide for SO-DIMM memory modules illustrates the correct installation of the purchased memory module. Please follow our notes and tips, and you can safely upgrade your device in just a few minutes.
Important! - Before Installing the Memory Module, Please Note the Following
Turn off the computer
Disconnect the power supply (if connected)
If available, remove the device’s battery – see the device’s user manual
-
Protect the memory module from static electricity:
a. Absolutely avoid touching the gold contacts of the memory module
b. Only hold the memory by the side edges
Ground yourself before touching electronic components
Opening the case of some computers may void the warranty
Proper Grounding
Before touching electronic components, you should definitely ground yourself. This protects the component from irreparable damage due to electrostatic discharge from your body. We therefore recommend using an anti-static wrist strap.
If you don’t have a wrist strap, simply touch a non-painted metal part, e.g., a radiator, faucet, or similar grounded metal piece before you begin the installation. After that, try to start the installation process without creating much friction with clothing, chairs, or the floor. Artificial fibers or films can charge up particularly strongly and quickly. You should definitely avoid contact with these during installation.
Tips
Do not use excessive force
Only install compatible memory modules
Read the notes in your device manual before you start installing the memory module
Use only suitable tools to open the device
Take your time and work carefully
Memory Installation

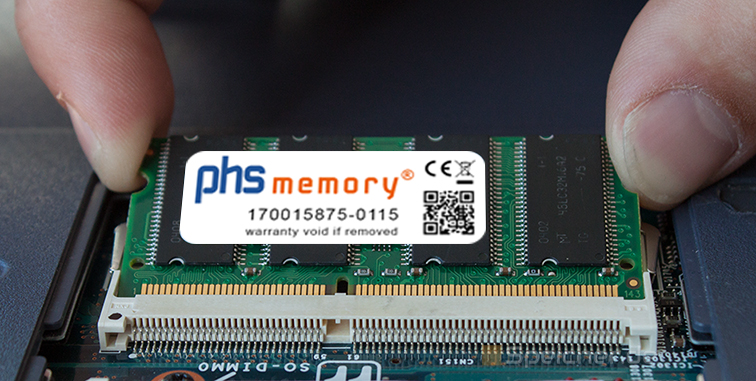

Once you are grounded, remove the memory module from the packaging and hold it with your thumb and index finger on the long sides of the memory module, ensuring you do not touch any components, especially the gold contacts.
Insert the memory at an angle of about 30°, with the gold contacts facing into the memory slot.

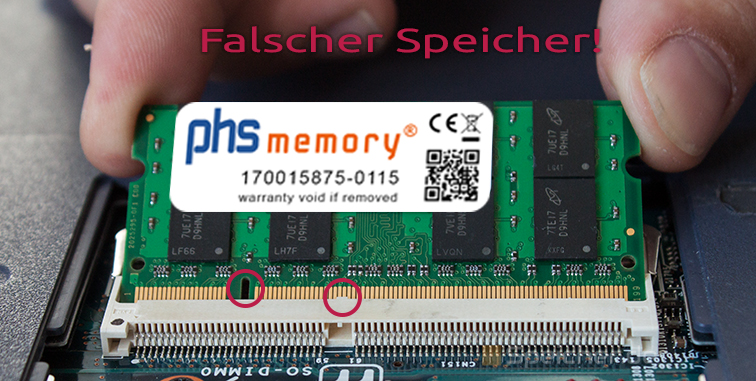

To avoid incorrect insertion, all memory modules have a notch, and the memory socket has a key.
IMPORTANT!
If you received the wrong memory module, we need the following information to resolve the issue:
Name/Manufacturer of your device
Exact model designation
Serial number of the device
Barcode number on the delivered memory
Detailed description of the problem
Please send us this information via email, including your customer or invoice number, to info@speicher.de.

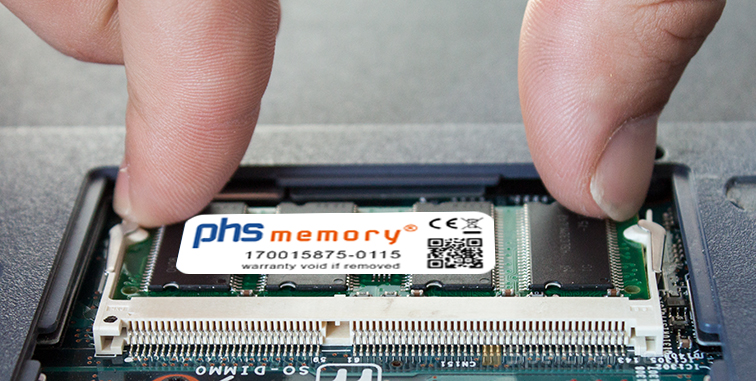

Now slide the memory module into the memory socket until the gold contacts are almost no longer visible.
If the memory module does not easily push into the memory socket, move the memory module slightly up and down while pressing it in.
Now press the memory module down until you hear a “click” and the module locks into place with the side clips.
The installation of the memory module is now complete. You can now close the device again.
Disclaimer / Copyright
Changing computer components is done at your own risk and should only be performed by individuals with appropriate experience. We are not liable for any personal or material damages that may occur.
This guide is the property of PHS-electronic GmbH and may not be copied or reproduced without the consent of PHS-electronic GmbH.
