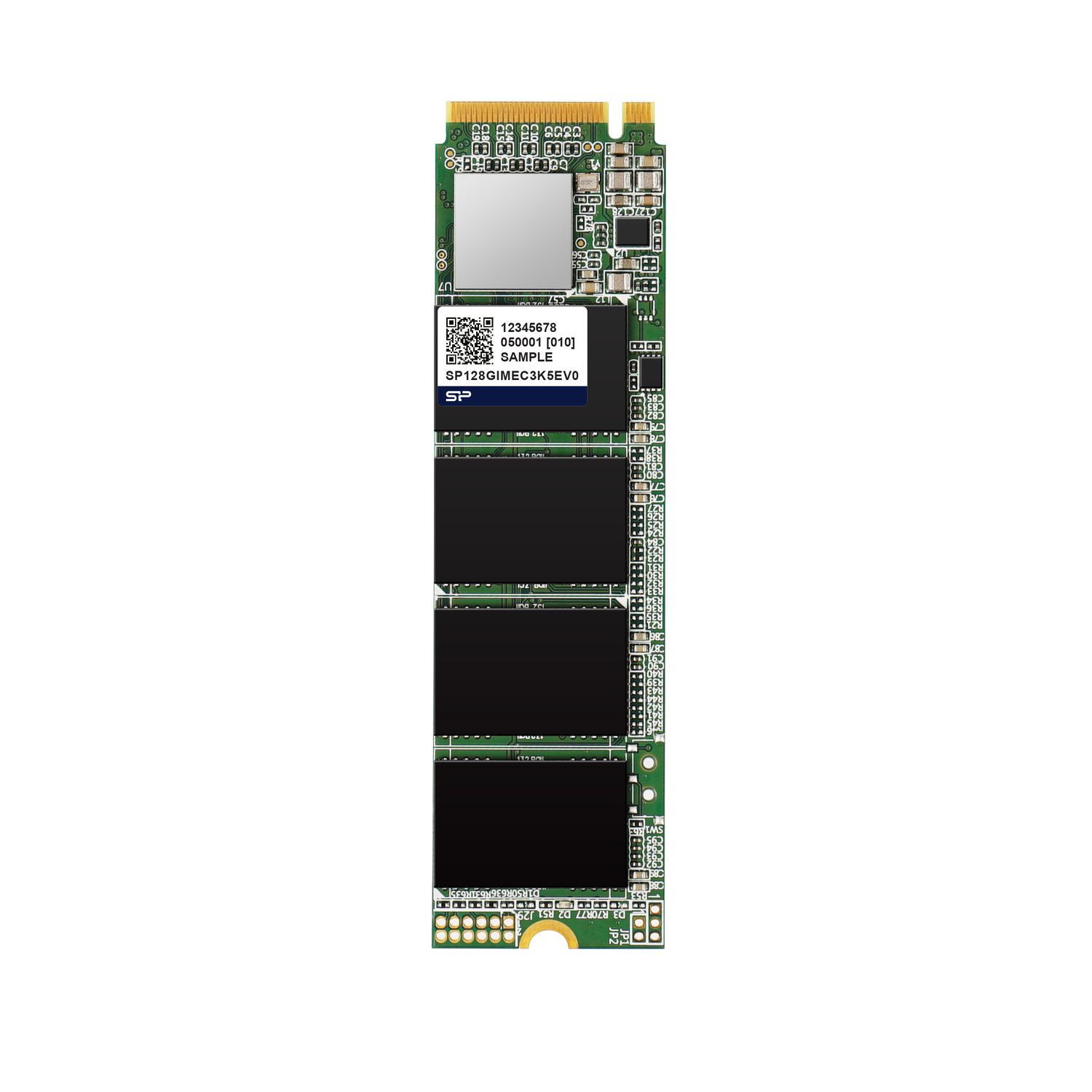

256GB MEC3K0E - Industrial SSD - 3D TLC - M.2 2280 (M Key) - PCIe Gen3x4, NVMe 1.4 - SP256GIMEC3K5EV0
256GB - M.2 NVMe -20°C ~ 75°C
Product number:
SP595696
Brand:
Silicon Power
General
| Interface | PCIe Gen3x4, NVMe 1.4 |
|---|---|
| Flash Technology | 3D TLC |
| Capacity | 256GB |
| Form Factor | M.2 2280 (M key) |
| Dimensions | 80.0 x 22.0 x 3.5 |
| External DRAM Buffer | No |
| Manufacturer Part No. | SP256GIMEC3K5EV0 |
Performance
| Seq. Performance Read (max.) | 2,570 MB/s |
|---|---|
| Seq. Performance Write (max.) | 2,030 MB/s |
| Random 4K Read (IOPS max.) | 270,000 |
| Random 4K Write (IOPS max.) | 262,000 |
| MTBF @ 25 °C | >3,000,000 hrs |
| P/E Cycle | 3,000 |
| TBW | 615 TB |
Operating Environment
| Operating Temperature | -20°C~75°C |
|---|---|
| Storage Temperature | -55°C~95°C |
| Operating Humidity | 10%~95% (30°C Max. Wet Bulb Temp) |
| Vibration | 20G, 10~2000Hz |
| Drop | 75cm |
| Shock | 1,500G@0.5ms |
Power Consumption
| Power Requirement | DC 3.3V |
|---|---|
| Power Operation (max.) | 1810 mA |
| Power Idle / Standby | 280 mA |
Key Features
| Advanced Power Shield | Yes |
|---|---|
| End-to-End Data Protection | Yes |
| Thermal Throttling | Yes |
| DEVSLP | Yes |
| S.M.A.R.T | Yes |
| Write Protect | Optional |
| Quick Erase | Optional |
| DAP | Yes |
| FWxpress | Yes |
Order info
| Item number | SP595696 |
|---|---|
| Brand | Silicon Power |
| EAN | 4713436137894 |
| Condition | New |
Indicated delivery times apply to shipping within Germany. The delivery times for shipping abroad as well as further information on delivery times can be found here.
The product photos do not necessarily reflect the actual appearance of the product. In the case of memory modules, this may be due to layout changes or other circumstances beyond our control.
Data sheet "256GB MEC3K0E - Industrial SSD - 3D TLC - M.2 2280 (M Key) - PCIe Gen3x4, NVMe 1.4 - SP256GIMEC3K5EV0"
What technological features do industrial M.2 PCIe SSDs have?
- Long-term availability (consistent model and firmware versions)
- Suitable for 24/7 operation
- Solid-state technology without mechanical components - shock and vibration resistant, wear-free and highly robust
- Low power consumption
- Silent operation
- Suitable for 24/7 operation
- Solid-state technology without mechanical components - shock and vibration resistant, wear-free and highly robust
- Low power consumption
- Silent operation
- Extended operating temperature range - depending on the model
Can the SP Toolbox (SMART Health Monitoring System) be used?
Yes, the SP Toolbox is fully supported, including SMART status display and firmware updates.
What is the Taric number of the M.2 PCIe - MEC3K0E?
8523511000
What is the UNSPSC (v5.03)?
43172601
In which country is the M.2 PCIe SSD - MEC3K0E manufactured?
Taiwan (TW)
Where can I obtain a RoHS certificate or a REACH declaration for the Silicon Power M.2 PCIe - MEC3K0E?
Upon request, we will be happy to provide you with the desired certificate or document.
Are the industrial M.2 PCIe SSDs CE, REACH and RoHS compliant?
Yes, all Silicon Power industrial M.2 PCIe SSDs are CE, REACH and RoHS compliant.
